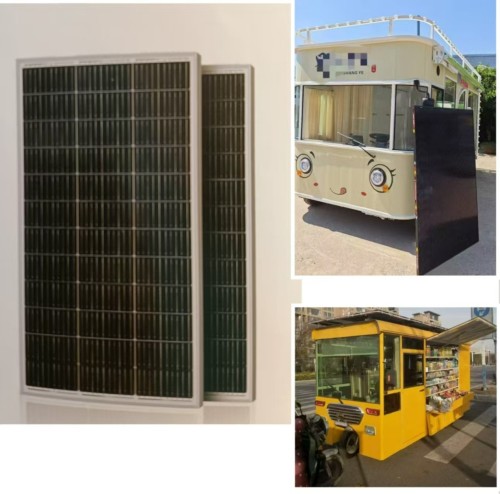

FOB Guangzhou port price: 18800, including cars, batteries, photovoltaic panels
Note: The whole container can be transported to Qingdao port.
|
|
Project content |
|
Image |
|
|
Technical parameters |
Dimensions(mm) |
2400*1160*1950 |
|
|
|
Rated Capacity (Person) |
2 |
|||
|
Maximum speed(km/h) |
30km/h |
|||
|
Minimum turning radius (m) |
≤3.5m |
|||
|
Maximum Gradeability (Full Load) |
15% |
|||
|
Maximum braking distance (m) |
≤4m |
|||
|
Maximum driving range (km) |
80-100 |
|||
|
Minimum ground clearance (mm) |
≥136 |
Wheelbase (mm) |
1690 |
|
|
Empty vehicle weight (kg) |
450 |
Wheel base(mm) |
870 |
|
|
Electrical systems |
accumulator |
60V Chaowei 100AH maintenance-free battery |
||
|
Charger |
On-board smart charger |
|||
|
controller |
Inball Controllers |
|||
|
Traction motors |
3KW AC asynchronous motor |
|||
|
Drivetrain |
Rear-drive, continuously variable transmission |
|||
|
move force Exercise control
|
Front axle and suspension |
Leaf spring front suspension |
||
|
Rear axle and suspension |
Monolithic rear axle |
|||
|
Braking system |
Four-wheel oil brake, parking brake |
|||
|
tyre |
205/50-10 |
|||
|
Steering system |
Rack and pinion type steering machine |
|||
|
Lights & Signals |
Combined headlights, turn signals, combined rear taillights, electric horn and reversing buzzer |
|||
|
Rearview mirrors |
Optional |
|||
|
seat |
Bus cold foam sponge + high resilience PU leather fabric |
|||
|
outside see |
appearance |
Fuel gauge, forward and backward switches |
||
|
Body material |
Steel frame + ABS engineering plastic molded parts |
|||
|
Color |
It can be customized according to customer requirements |
|||
